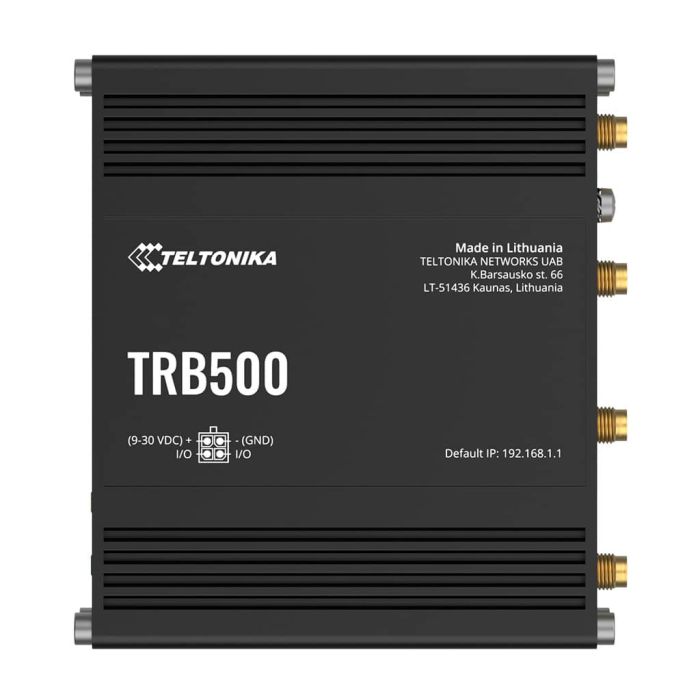

Teltonika TRB500 5G Industrial Gateway

345,00 €

Disponibile

SKU

TR-Router-TRB500

Il TRB500 è un gateway 5G compatto ed efficiente dal punto di vista energetico, progettato per trasmissioni dati ultra-veloci con latenza estremamente bassa. La compatibilità retroattiva con le reti 4G e 3G consente di rendere future-proof le infrastrutture anche in aree dove il 5G non è ancora disponibile.

Il Teltonika TRB500 è un compatto e robusto gateway industriale 5G per IoT progettato per applicazioni critiche. Realizzato con attenzione alla durabilità e affidabilità, garantisce una connessione sicura e ad alta velocità anche in ambienti difficili.

Grazie alle sue prestazioni 5G e al supporto per funzionalità di rete avanzate, il TRB500 è ideale per installazioni remote, macchinari industriali intelligenti e dispositivi IoT che richiedono continuità operativa.

Sia che venga utilizzato come fonte principale di internet in aree rurali, sia come soluzione di failover per connessioni instabili, il TRB500 offre una connettività affidabile che mantiene le operazioni sempre online.

Semplice da configurare grazie a un intuitivo interfaccia web e al supporto per gestione remota, il TRB500 unisce velocità di nuova generazione alla facilità di implementazione per cui i dispositivi Teltonika sono noti.

MOBILE

Mobile module	5G Sub-6 GHz SA/NSA 2.1/3.3 Gbps DL (4x4 MIMO), 900/600 Mbps UL (2x2); 4G LTE Cat 20 up to 2.0 Gbps DL / 200 Mbps UL; 3G up to 42 Mbps DL / 5.76 Mbps UL
3GPP Release	Release 15
Status	IMSI, ICCID, operator/state, data connection state, network type, CA indicator, bandwidth, connected band, RSSI, SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, MNC
SMS	SMS status/config, Email↔SMS, SMS→HTTP, SMS→SMS, scheduled SMS, auto-reply, SMPP
USSD	Send and read USSD
Block/Allow list	Operator block/allow list (by country or operator)
Band management	Band lock, used band status
SIM PIN code	Set, change, or disable SIM PIN
APN	Auto APN
Bridge	Direct bridge between mobile ISP and LAN device
Passthrough	Assigns mobile WAN IP to a LAN device
Framed routing	Supports an IP network behind 5G UE

ETHERNET

Ethernet

1 × ETH port, 10/100/1000 Mbps, auto MDI/MDIX

NETWORK

Routing	Static, BGP, OSPFv2, RIP v1/v2, EIGRP, NHRP, Policy-based routing
Network protocols	TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, WOL, VXLAN
VoIP passthrough	H.323 & SIP-ALG NAT helpers
Connection monitoring	Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP
Firewall	Port forward, traffic rules, custom rules, TTL customization
Firewall status page	View statistics, rules, and counters
Port management	View/enable/disable ports, auto-config on/off, change speed
Network topology	Visual representation of connected devices
Hotspot	Captive portal, internal/external RADIUS, MAC auth, SMS auth, SSO, internal/external landing page, walled garden, user scripts, URL params, user/groups, limits, user mgmt, 9 customizable themes (upload/download)
DHCP	Static/dynamic allocation, relay, server config & status, static leases (MAC wildcards)
DDNS	>77 providers; manual config supported
DNS over HTTPS	DoH proxy
Network backup	Mobile, VRRP, Wired failover
SSHFS	Mount remote filesystem via SSH
Traffic Management	Real-time monitoring, signal charts, usage history

SECURITY

Authentication	Pre-shared key, digital & X.509 certs, TACACS+, Internal/External RADIUS, IP & login block, time-based blocking, random password generator
Firewall	Preconfigured rules via WebUI; unlimited via CLI; DMZ, NAT, NAT-T, NAT64
Attack prevention	DDoS (SYN, SSH, HTTP/HTTPS), port scan (SYN-FIN, SYN-RST, X-mas, NULL, FIN)
VLAN	Port and tag-based separation
Mobile quota control	Data limit, period, start time, warning, phone number
WEB filter	Blacklist / Whitelist
Access control	Flexible access to SSH, Web, CLI, Telnet
SSL certificate generation	Let’s Encrypt, SCEP

VPN

OpenVPN	Multiple clients and server simultaneously; 27 encryption methods
OpenVPN Encryption	DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC/CFB/CFB1/CFB8/OFB/GCM, AES-192-CFB/CFB1/CFB8/OFB/CBC/GCM, AES-256-GCM/CFB/CFB1/CFB8/OFB/CBC
IPsec	XFRM, IKEv1, IKEv2; 14 methods (3DES, DES, AES128/192/256, AES128/192/256 GCM8/12/16)
GRE	GRE tunnel; GRE over IPsec
PPTP, L2TP	Client/Server; L2TPv3; L2TP over IPsec
Stunnel	TLS encryption wrapper proxy
DMVPN	Scalable IPsec VPNs; Phase 2/3; Dual Hub
SSTP	SSTP client
ZeroTier	ZeroTier VPN client
WireGuard	WireGuard client & server
Tinc	Encryption, authentication, compression; client & server

OPC UA

Supported modes	Client, Server
Supported connection types	TCP

MODBUS

Supported modes	Server, Client
Supported connection types	TCP
Custom registers	MODBUS TCP custom register block requests (read/write to file)
Supported data formats	8-bit: INT, UINT; 16-bit: INT, UINT (MSB/LSB); 32-bit: float, INT, UINT (ABCD/DCBA/CDAB/BADC), HEX, ASCII

DATA TO SERVER

Protocol	HTTP(S), MQTT, Azure MQTT
Data to server	Extract params from multiple sources/protocols and send to one server; custom LUA scripting

MQTT GATEWAY

Modbus MQTT Gateway

Send commands / receive data from MODBUS Server via MQTT broker

DNP3

Supported modes	Station, Outstation
Supported connection	TCP

DLMS/COSEM

DLMS Support	Standard protocol for utility meter data exchange
Supported modes	Client
Supported connection types	TCP

API

Teltonika Networks Web API

Beta support; configurable endpoints to retrieve/change data. Docs: https://developers.teltonika-networks.com

MONITORING & MANAGEMENT

WEB UI	HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multi event log servers, FW update notifications, event/system/kernel logs, Internet status
FOTA	Firmware update from server, automatic notification
SSH	SSH (v1, v2)
SMS	SMS status, configuration
Call	Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with timer
TR-069	OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT	MQTT Broker, MQTT publisher
SNMP	SNMP (v1, v2, v3), SNMP Trap, brute-force protection
JSON-RPC	Management API over HTTP/HTTPS
RMS	Teltonika Remote Management System (RMS)

IOT PLATFORMS

ThingWorx	Monitor: WAN Type/IP, Operator Name, Signal Strength, Network Type
Cumulocity / Cloud of Things	Monitor: Model, Revision, Serial, WAN Type/IP, Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength; Reboot & FW upgrade actions
Azure IoT Hub	Data to Server to cloud; Direct Methods (RutOS API); Plug & Play with DPS (zero-touch provisioning)
AWS IoT Core	Utility to interact with AWS; Jobs support (call device API)

SYSTEM CHARACTERISTICS

CPU	Single core ARM Cortex-A7, 1.5 GHz
RAM	256 MB
FLASH storage	512 MB

FIRMWARE / CONFIGURATION

WEB UI	Update FW from file, check FW on server, configuration profiles, backup
FOTA	Update FW
RMS	Update FW/configuration for multiple devices
Keep settings	Update FW without losing configuration
Factory settings reset	Restores all system settings to manufacturer defaults

FIRMWARE CUSTOMISATION

Operating system	RutOS (OpenWrt-based Linux)
Supported languages	Busybox shell, Lua, C, C++, Python, Java (via Package Manager)
Development tools	SDK package with build environment
GPL customization	Custom branded firmware and web UI (colors, logos, etc.)
Package Manager	Install additional software on the device

INPUT / OUTPUT

Input	Up to 2 × configurable digital inputs (shared); 0–6 V = low, 8–30 V = high
Output	Up to 2 × configurable digital outputs (shared); open collector; max 30 V, 300 mA
Events	Email, RMS, SMS
I/O juggler	Set I/O conditions to initiate events

POWER

Connector	4-pin industrial DC power socket
Input voltage range	9–30 VDC; reverse polarity protection; surge ±1 kV 50 µs max
Power consumption	Idle < 3 W; Max < 6 W

PHYSICAL INTERFACES

Ethernet	1 × RJ45 port, 10/100/1000 Mbps
I/Os	2 × configurable digital I/O on 4-pin power connector
Status LEDs	3 × connection type, 3 × signal strength, 2 × ETH, 1 × Power
SIM	1 × Mini SIM (2FF), 1.8 V/3 V
Power	1 × 4-pin power connector
Antennas	4 × SMA (Mobile)
USB	1 × virtual network interface via micro USB
Reset	Reboot / User default reset / Factory reset button

PHYSICAL SPECIFICATION

Casing material	Aluminium housing
Dimensions	100 × 30 × 93.4 mm
Weight	241 g
Mounting options	DIN rail, wall mount, flat surface (kits required)

OPERATING ENVIRONMENT

Operating temperature	-40 °C to 75 °C
Operating humidity	10% to 90% non-condensing
Ingress Protection	IP30

REGULATORY & TYPE APPROVALS

Regulatory

CE, UKCA, RCM, CB, NBTC, RoHS, REACH

EMC EMISSIONS & IMMUNITY

Standards	EN 55032:2015 + A11:2020 + A1:2020; EN 55035:2017 + A11:2020; EN IEC 61000-3-2:2019 + A1:2021; EN 61000-3-3:2013 + A1:2019 + A2:2021; EN 301 489-1 V2.2.3; EN 301 489-52 V1.2.1
ESD	EN 61000-4-2:2009
Radiated Immunity	EN IEC 61000-4-3:2020
EFT	EN 61000-4-4:2012
Surge Immunity	EN 61000-4-5:2014 + A1:2017
CS	EN 61000-4-6:2014
DIP	EN 61000-4-11:2020

Standards

EN 301 908-1 V13.1.1; EN 301 908-2 V13.1.1; EN 301 908-13 V13.1.1; EN 301 908-25 V15.1.1_15.0.6

SAFETY

Standards

CE: EN IEC 62368-1:2020 + A11:2020, EN 62311:2020; RCM: AS/NZS 62368.1:2022; CB: IEC 62368-1:2018

Download

TRB500 Flyer (EN) - Apri Qui
TRB500 Scheda Tecnica (EN) - Apri Qui
TRB500 Guida Rapida (EN) - Apri Qui
Download Firmware - Apri Qui
Manuale Utente TRB500 - Apri Qui
Certificazioni e Approvazioni - Apri Qui
Notifiche di Modifica del Prodotto - Apri Qui
Download SDK - Apri Qui
Download GPL - Apri Qui
Modelli 3D TRB500 - Apri Qui
