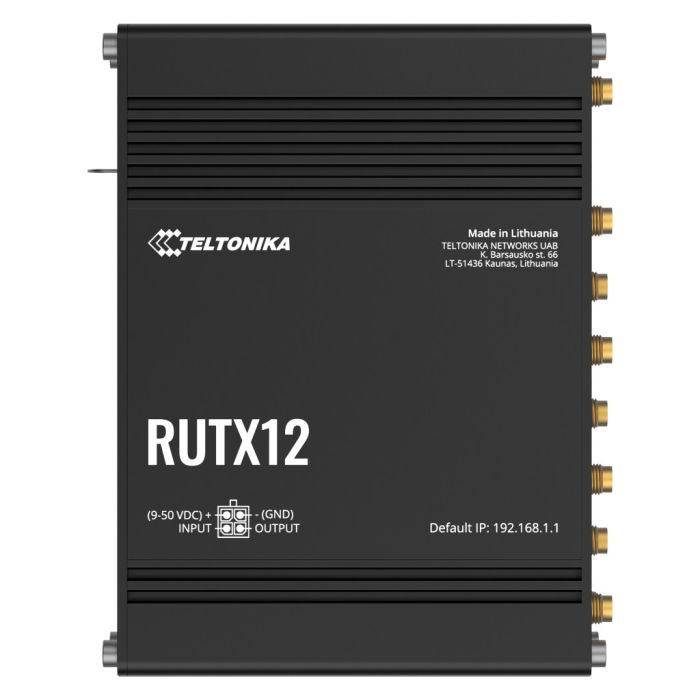

Teltonika RUTX12 Dual Cat 6 Cellular Router

390,00 €

Disponibile

Solo 2 rimasto/i

SKU

TP-Router-RUTX12

Questo potente router dual LTE Cat 6 è la soluzione ideale per applicazioni mission-critical. I due modem cellulari consentono connessioni simultanee, commutazione continua del servizio mobile e funzioni di bilanciamento del carico, rendendo questo dispositivo insostituibile negli scenari in cui la perdita di connessione non è un’opzione.

Il Teltonika RUTX12 è un router industriale dual LTE Cat-6 progettato per applicazioni critiche in cui affidabilità e velocità sono fondamentali. Integra due modem cellulari che consentono connessioni mobili simultanee, configurabili per il bilanciamento del carico o il failover automatico, garantendo un servizio continuo senza interruzioni.

Il router offre inoltre Wi-Fi dual-band 5 con supporto MU-MIMO per prestazioni wireless elevate e più porte Ethernet Gigabit per una connettività cablata flessibile.

Grazie al robusto alloggiamento in alluminio e al supporto di un ampio intervallo di temperature operative, è particolarmente adatto ad ambienti industriali difficili o installazioni remote.

Le funzionalità software avanzate, come il supporto VPN, la protezione firewall, la gestione remota e la commutazione automatica di SIM e rete, rendono il RUTX12 una soluzione versatile per applicazioni enterprise, IoT e industriali che richiedono una connettività resiliente e sempre attiva.

MOBILE

Modulo mobile	2 × 4G LTE Cat 6 fino a 300 Mbps DL / 50 Mbps UL; 3G fino a 42 Mbps DL / 5,76 Mbps UL
Release 3GPP	Release 12
eSIM*	eSIM consumer, download e rimozione dei profili, fino a 7 profili eSIM; piani dati non inclusi *Disponibilità in base al codice prodotto
Commutazione SIM*	Dual SIM ed eSIM, commutazione automatica in caso di segnale debole, limite dati/SMS, roaming, assenza rete, rete negata, errore connessione dati, protezione SIM inattiva *Disponibilità in base al codice prodotto
Stato	IMSI, ICCID, operatore, stato operatore, stato connessione dati, tipo rete, indicatore CA, banda, banda connessa, RSSI, SINR, RSRP, RSRQ, EC/IO, RSCP, dati inviati/ricevuti, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, MNC
SMS	Stato SMS, configurazione SMS, Email → SMS, SMS → Email, SMS → HTTP, SMS → SMS, SMS programmati, risposta automatica, SMPP
USSD	Invio e ricezione messaggi USSD
Lista blocco/consenti	Blocco o autorizzazione operatori (per paese o singolo operatore)
PDN multipli	Utilizzo di PDN differenti per accessi e servizi di rete multipli
Gestione bande	Blocco banda, visualizzazione banda utilizzata
Protezione SIM inattiva	Commutazione periodica sulla SIM inattiva per evitare il blocco della SIM
Gestione PIN SIM	Impostazione, modifica o disattivazione del PIN SIM
APN	APN automatico
Bridge	Connessione diretta tra ISP mobile e dispositivo LAN
Passthrough	Assegnazione dell’IP WAN mobile a un dispositivo LAN

WIRELESS

Modalità wireless	802.11b/g/n/ac Wave 2 (Wi-Fi 5) fino a 867 Mbps (Dual Band, MU-MIMO), 802.11r, Access Point (AP), Station (STA)
Sicurezza Wi-Fi	WPA2-Enterprise, WPA2-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, separazione client, EAP-TLS, 802.11w PMF
SSID/ESSID	Modalità SSID nascosto e controllo accessi basato su MAC
Utenti Wi-Fi	Fino a 150 connessioni simultanee
Funzionalità wireless	Mesh wireless (802.11s), fast roaming (802.11r), 802.11v, 802.11k
Filtro MAC wireless	Whitelist, blacklist
Generatore QR Wi-Fi	Accesso rapido alla rete senza inserire credenziali
TravelMate	Reindirizzamento captive portal verso un altro dispositivo

BLUETOOTH

Bluetooth 4.0

Bluetooth Low Energy (BLE) per comunicazioni a corto raggio

ETHERNET

WAN	1 × porta WAN 10/100/1000 Mbps
LAN	4 × porte LAN 10/100/1000 Mbps

NETWORK

Routing	Static routing; Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP); Policy-based routing
Network protocols	TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
VoIP passthrough support	H.323 and SIP-ALG protocol NAT helpers
Connection monitoring	Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall	Port forward, traffic rules, custom rules, TTL target customisation
Firewall status page	View all firewall statistics, rules, and rule counters
Port management	View device ports; enable/disable; auto-configuration on/off; change speed
Network topology	Visual representation of your network and connected devices
Hotspot	Captive portal, internal/external RADIUS server, RADIUS MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, per-user/group limits, user management, 9 default customisable themes and ability to upload/download custom themes
DHCP	Static & dynamic IP allocation, DHCP relay, DHCP server configuration & status, static leases with MAC wildcards
QoS / Smart Queue Management (SQM)	Traffic priority by source/destination, service, protocol or port; WMM; 802.11e
DDNS	Supported >77 providers; manual configuration supported
DNS over HTTPS	DNS over HTTPS proxy
Network backup	Wi-Fi WAN, Mobile, VRRP, Wired options; automatic failover
Load balancing	Balance Internet traffic over multiple WAN connections
SSHFS	Mount remote file system via SSH protocol
VRF support	Initial virtual routing and forwarding (VRF) support
Traffic Management	Real-time monitoring, wireless signal charts, traffic usage history

SECURITY

802.1x	Port-based network access control client
Authentication	Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS user authentication, IP & login attempts block, time-based login blocking, built-in random password generator
Firewall	Preconfigured rules via WebUI; unlimited configuration via CLI; DMZ, NAT, NAT-T, NAT64
Attack prevention	DDoS prevention (SYN flood, SSH, HTTP/HTTPS), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan)
VLAN	Port and tag-based VLAN separation
Mobile quota control	Mobile data limit, customizable period, start time, warning limit, phone number
WEB filter	Blacklist for unwanted websites; Whitelist for allowed sites only
Access control	Flexible access control of SSH, Web interface, CLI and Telnet
TPM*	Identification and authentication module, TPM 2.0 standard *Feature availability varies by order code
SSL certificate generation	Let's Encrypt and SCEP certificate generation

VPN

OpenVPN	Multiple clients and a server can run simultaneously; 27 encryption methods
OpenVPN Encryption	DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC/CFB/CFB1/CFB8/OFB/GCM, AES-192-CFB/CFB1/CFB8/OFB/CBC/GCM, AES-256-GCM/CFB/CFB1/CFB8/OFB/CBC
IPsec	XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
GRE	GRE tunnel, GRE tunnel over IPsec support
PPTP, L2TP	Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
Stunnel	TLS encryption wrapper proxy (adds TLS to existing clients/servers without code changes)
DMVPN	Scalable IPsec VPNs; Phase 2 & 3; Dual Hub support
SSTP	SSTP client instance support
ZeroTier	ZeroTier VPN client support
WireGuard	WireGuard VPN client and server support
Tinc	Encryption, authentication and compression; client & server support
Tailscale	Encrypted point-to-point connections using WireGuard; simpler than traditional VPNs

OPC UA

Supported modes	Client, Server
Supported connection types	TCP

MODBUS

Supported modes	Server, Client
Supported connection types	TCP, USB
Custom registers	MODBUS TCP custom register block requests (read/write to a file inside the router)
Supported data formats	8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD, DCBA, CDAB, BADC), HEX, ASCII

DATA TO SERVER

Protocol	HTTP(S), MQTT, Azure MQTT
Data to server	Extract parameters from multiple sources and protocols, and send them to a single server; custom LUA scripting supported

MQTT GATEWAY

Modbus MQTT Gateway

Send commands and receive data from MODBUS Server through MQTT broker

DNP3

Supported modes	Station, Outstation
Supported connection	TCP, USB

DLMS/COSEM

DLMS Support	DLMS – standard protocol for utility meter data exchange
Supported modes	Client
Supported connection types	TCP, USB

API

Teltonika Networks Web API (beta)

Configurable endpoints to retrieve or change data (see developers documentation)

MONITORING & MANAGEMENT

WEB UI	HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event/system/kernel logs, Internet status
FOTA	Firmware update from server, automatic notification
SSH	SSH (v1, v2)
SMS	SMS status, SMS configuration
Call	Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with timer, Wi-Fi on/off
TR-069	OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT	MQTT Broker, MQTT publisher
SNMP	SNMP (v1, v2, v3), SNMP Trap, brute-force protection
JSON-RPC	Management API over HTTP/HTTPS
RMS	Teltonika Remote Management System (RMS)

IOT PLATFORMS

ThingWorx	Monitor WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity – Cloud of Things	Monitor Device Model/Revision/Serial, WAN Type/IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength; reboot and firmware upgrade actions
Azure IoT Hub	Send parameters via Data to Server; Direct Methods (RutOS API); Plug & Play with Device Provisioning Service (zero-touch)
AWS IoT Core	Interact with AWS cloud platform; Jobs support to call device API

SYSTEM CHARACTERISTICS

CPU	Quad-core ARM Cortex A7, 717 MHz
RAM	256 MB DDR3
FLASH storage	256 MB SPI Flash

FIRMWARE / CONFIGURATION

WEB UI	Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA	Update FW
RMS	Update FW/configuration for multiple devices at once
Keep settings	Update FW without losing current configuration
Factory settings reset	Full factory reset restores all system settings to defaults

FIRMWARE CUSTOMISATION

Operating system	RutOS (OpenWrt-based Linux OS)
Supported languages	Busybox shell, Lua, C, C++, Python, Java (via Package Manager)
Development tools	SDK package with build environment provided
GPL customization	Custom branded firmware and web page application (colours, logos, etc.)
Package Manager	Install additional software on the device

LOCATION TRACKING

GNSS	GPS, GLONASS, BeiDou, Galileo, QZSS
Coordinates	GNSS coordinates via WebUI, SMS, TAVL, RMS
NMEA	NMEA 0183
NTRIP	NTRIP protocol (Networked Transport of RTCM via Internet Protocol)
Server software	TAVL, RMS
Geofencing	Configurable multiple geofence zones

USB

Data rate	USB 2.0
Applications	Samba share, USB-to-serial
External devices	External HDD, flash drive, additional modem, printer, USB-serial adapter
Storage formats	FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4

INPUT / OUTPUT

Input	1 × Digital Input, 0–6 V detected as low, 8–30 V detected as high
Output	1 × Digital Output, open collector, max 30 V / 300 mA
Events	Email, RMS, SMS
I/O juggler	Configure I/O conditions to initiate events

POWER

Connector	4-pin industrial DC power socket
Input voltage range	9–50 VDC, reverse polarity protection, surge/transient protection
PoE (passive)	Possibility to power via LAN1 port, Mode B, 9–50 VDC (not compatible with IEEE 802.3af/at/bt)
Power consumption	Idle: < 4 W, Max: < 22 W

PHYSICAL INTERFACES

Ethernet	5 × RJ45 ports, 10/100/1000 Mbps
I/Os	1 × Digital Input, 1 × Digital Output on 4-pin power connector
Status LEDs	4 × connection status, 6 × connection strength, 10 × Ethernet port status, 4 × WAN status, 1 × Power, 2 × 2.4G & 5G Wi-Fi LEDs
SIM	2 × SIM slots (Mini SIM – 2FF), 1.8 V/3 V, external holders
Power	1 × 4-pin power connector
Antennas	4 × SMA for LTE, 2 × RP-SMA for Wi-Fi, 1 × RP-SMA for Bluetooth, 1 × SMA for GNSS
USB	1 × USB-A port for external devices
Reset	Reboot / User default reset / Factory reset button
Other	1 × Grounding screw

PHYSICAL SPECIFICATION

Casing material	Full aluminium housing
Dimensions (W × H × D)	132 × 44.2 × 95.1 mm
Weight	540 g
Mounting options	DIN rail, wall mount, flat surface (kits required)

OPERATING ENVIRONMENT

Operating temperature	-40 °C to 75 °C
Operating humidity	10% to 90% non-condensing
Ingress Protection Rating	IP30

REGULATORY & TYPE APPROVALS

Regulatory

CE, UKCA, EAC, UCRF, CITC, ANRT, ICASA, NOM, Anatel, RCM, SIRIM, NTC, NBTC, CB, E-mark

EMC EMISSIONS & IMMUNITY

Standards	EN 55032:2015; EN 55035:2017; EN IEC 61000-3-2:2019; EN 61000-3-3:2013 + A1:2019; EN 301 489-1 V2.2.3; EN 301 489-3 V2.1.1; EN 301 489-17 V3.2.4; EN 301 489-19 V2.1.1; Draft EN 301 489-52 V1.1.0
ESD	EN 61000-4-2:2009
Radiated Immunity	EN IEC 61000-4-3:2006 + A1:2008 + A2:2010
EFT	EN 61000-4-4:2012
Surge Immunity (AC Mains)	EN 61000-4-5:2014 + A1:2017
CS	EN 61000-4-6:2014
DIP	EN 61000-4-11:2004 + A1:2017

Standards

EN 300 328:V2.2.2; EN 300 440:V2.2.1; EN 301 893 V2.1.1; EN 301 908-1:V13.1.1; EN 301 908-2:V13.1.1; EN 301 908-13:V13.1.1; EN 303 413 V1.1.1

SAFETY

Standards

CE: EN IEC 62368-1:2020 + A11:2020; RCM: AS/NZS 62368.1:2018; CB: IEC 62368-1:2018

Download

RUTX12 Flyer (EN) – Apri qui
RUTX12 Datasheet (EN) – Apri qui
RUTX12 Guida rapida (EN) – Apri qui
Download firmware – Apri qui
Manuale utente RUTX12 – Apri qui
Certificazioni e approvazioni – Apri qui
Notifiche di modifica prodotto – Apri qui
Download SDK – Apri qui
Download GPL – Apri qui
Modelli 3D RUTX12 – Apri qui
