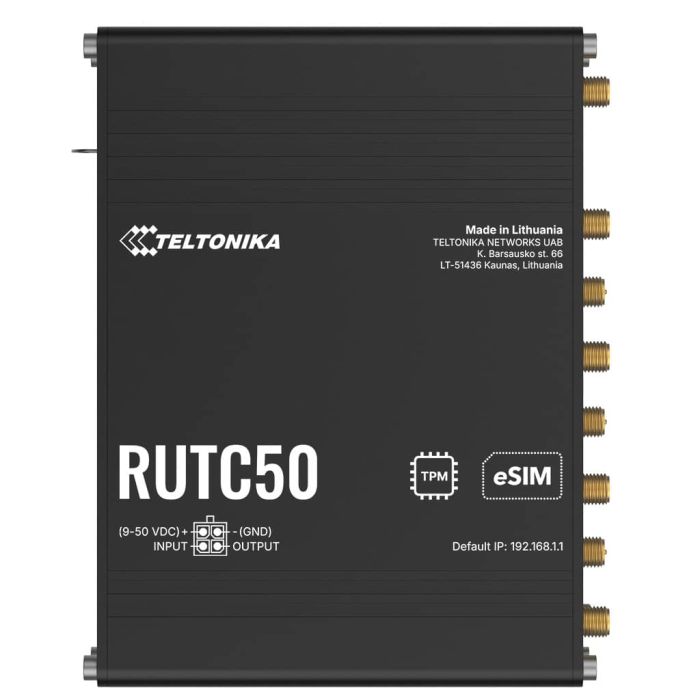

Teltonika RUTC50 5G Industrial Gateway

590,00 €

Disponibile

SKU

TP-Router-RUTC50

Libera il pieno potenziale delle tue applicazioni edge con il router 5G RUTC50. Questo compatto concentrato di potenza combina il 5G ultra-veloce (fino a 3,4 Gbps), Wi-Fi 6 dual-band e una maggiore capacità di elaborazione con 1 GB di RAM e 8 GB di memoria flash. Dotato di doppia SIM e eSIM per implementazioni globali senza contatto, il RUTC50 garantisce comunicazioni ultra-veloci a bassa latenza per operazioni mission-critical. Robusto, potente e pronto per il futuro.

Il Teltonika RUTC50 è un potente router industriale 5G progettato per fornire elevata larghezza di banda, bassa latenza e connettività affidabile sia wireless che cablata in ambienti esigenti. Supporta il 5G Sub-6GHz (modalità SA e NSA), offrendo velocità di download fino a ~3,4 Gbps, oltre a elevate prestazioni in uplink. Quando il 5G non è disponibile, passa automaticamente a 4G (Cat 20) e 3G. La parte wireless è dotata di Wi-Fi 6 dual-band (2,4 GHz & 5 GHz) con tecnologia multi-user MIMO, permettendo la connessione simultanea di molti dispositivi.

Per garantire ridondanza e resilienza, dispone di doppia SIM con failover automatico, consentendo il cambio di rete in modo automatico (in caso di segnale debole, superamento del limite dati, ecc.). Sul lato cablato include più porte Ethernet Gigabit. È presente anche il GNSS integrato per un tracciamento preciso della posizione. Il design robusto e le funzionalità di gestione remota (tramite Teltonika RMS, ecc.) lo rendono ideale per scenari industriali, aziendali, smart city o IoT edge, dove è richiesta connettività sempre attiva con buone prestazioni wireless.

MOBILE

Modulo mobile	5G Sub-6 GHz SA/NSA 2,4/3,4 Gbps DL (4x4 MIMO), 900/550 Mbps UL (2x2); 4G (LTE) – LTE Cat 19 1,6 Gbps DL, Cat 18 200 Mbps UL; 3G – 42 Mbps DL, 5,76 Mbps UL
eSIM*	eSIM consumer, operazioni di download e rimozione del profilo, fino a 7 profili eSIM; non include piani dati Disponibilità della funzione variabile in base al codice ordine (RUTC50 1****)
Release 3GPP	Release 16
Switch SIM*	2 schede SIM, casi di switch automatico: segnale debole, limite dati, limite SMS, roaming, nessuna rete, rete negata, fallimento connessione dati, protezione SIM inattiva Disponibilità della funzione variabile in base al codice ordine (RUTC50 0****)
Switch SIM**	2 schede SIM e 1 eSIM, casi di switch automatico: segnale debole, limite dati, limite SMS, roaming, nessuna rete, rete negata, fallimento connessione dati, protezione SIM inattiva *Disponibilità della funzione variabile in base al codice ordine (RUTC50 1****)
Stato	Forza segnale (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, byte inviati/ricevuti, banda connessa, IMSI, ICCID, operatore SIM, operatore di rete, tipo di rete, cell ID, LAC, TAC, ARFCN, UARFCN, EARFCN
SMS	Stato SMS, configurazione SMS, EMAIL↔SMS, SMS↔EMAIL, SMS→HTTP, SMS→SMS, SMS programmati, risposta automatica, SMPP
USSD	Supporto invio e lettura messaggi USSD
Lista blocco/permesso	Operatori bloccati/permessi (per paese o operatori separati)
Multiple PDN	Uso di PDN diversi per accesso a più reti e servizi
Gestione bande	Blocco banda, visualizzazione stato banda utilizzata
Servizio protezione SIM inattiva	Switch periodico alla SIM non utilizzata e connessione dati per prevenire blocco SIM
Gestione PIN SIM	Imposta, cambia o disabilita PIN SIM
APN	APN automatico
Bridge	Bridge diretto tra ISP mobile e dispositivo LAN
Passthrough	Assegna IP WAN mobile a un dispositivo LAN
Routing framed	Supporto rete IP dietro UE 5G

WIRELESS

Wireless mode	802.11b/g/n/ac/ax (Wi-Fi 6) up to 2402 Mbps @5 GHz, 576 Mbps @2.4 GHz (Dual Band, MU-MIMO)
Wi-Fi security	WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, auto-cipher; client separation; EAP-TLS with PKCS#12; disable auto-reconnect; 802.11w PMF
SSID/ESSID	SSID stealth mode; MAC-based access control
WiFi users	Up to 512 simultaneous connections
Wireless connectivity	Mesh (802.11s), fast roaming (802.11r), BSS transition (802.11v), RRM (802.11k)
Wireless MAC filter	Allowlist / Blocklist
Wireless QR code generator	Scan to auto-join without credentials
TravelMate	Forward hotspot landing page to a subsequent connected device

ETHERNET

WAN	1 × WAN 10/100/1000 Mbps; IEEE 802.3/802.3u/802.3az; auto MDI/MDIX
LAN	4 × LAN 10/100/1000 Mbps; IEEE 802.3/802.3u/802.3az; auto MDI/MDIX

NETWORK

Routing	Static; Dynamic (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP); Policy-based routing
Network protocols	TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, WOL, VXLAN
VoIP passthrough support	H.323 and SIP-ALG NAT helpers
Connection monitoring	Ping Reboot, Wget Reboot, Periodic Reboot, LCP & ICMP
Firewall	Port forward, traffic rules, custom rules, TTL customization
Firewall status page	View statistics, rules, counters
Port management	Enable/disable ports, auto-config on/off, change speed
Network topology	Visual representation of connected devices
DHCP	Static/dynamic allocation, relay, server config & status, static leases (MAC wildcards)
QoS / SQM	Priority by source/destination, service, protocol or port; WMM; 802.11e
DDNS	>77 providers; manual config supported
DNS over HTTPS	DoH proxy
Network backup	Wi-Fi WAN, Mobile, VRRP, Wired failover
Load balancing	Balance Internet traffic over multiple WANs
Hotspot	Captive portal; internal/external RADIUS; MAC auth; SMS auth; SSO; landing pages; walled garden; user scripts; URL params; users/groups; limits; user mgmt; 9 customizable themes
Hotspot 2.0	Seamless, secure, automatic connection to trusted Wi-Fi networks
SSHFS	Mount remote filesystem via SSH
Traffic Management	Real-time monitoring, wireless signal charts, traffic usage history
Port Mirroring	Mirror Ethernet traffic for analysis

SECURITY

802.1x	Port-based network access control client
Authentication	PSK, digital & X.509 certs, TACACS+, Internal/External RADIUS, IP & login block, time-based blocking, random password generator
Firewall	Preconfigured via WebUI; unlimited via CLI; DMZ, NAT, NAT-T, NAT64
Attack prevention	DDoS (SYN/SSH/HTTP/HTTPS), port scan (SYN-FIN, SYN-RST, X-mas, NULL, FIN)
VLAN	Port and tag-based separation
Mobile quota control	Data limit, period, start time, warning, phone number
WEB filter	Blacklist / Whitelist
Access control	Flexible access to SSH, Web, CLI, Telnet
TPM	TPM 2.0 module
SSL certificate generation	Let’s Encrypt, SCEP

VPN

OpenVPN	Multiple clients and a server simultaneously; 27 encryption methods
OpenVPN Encryption	DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC/CFB/CFB1/CFB8/OFB/GCM, AES-192-CFB/CFB1/CFB8/OFB/CBC/GCM, AES-256-GCM/CFB/CFB1/CFB8/OFB/CBC
IPsec	XFRM, IKEv1, IKEv2; 14 methods (3DES, DES, AES128/192/256, AES128/192/256 GCM8/12/16)
GRE	GRE tunnel; GRE over IPsec
PPTP, L2TP	Client/Server; L2TPv3; L2TP over IPsec
Stunnel	TLS encryption wrapper proxy
DMVPN	Scalable IPsec VPNs; Phase 2/3; Dual Hub
SSTP	SSTP client
ZeroTier	ZeroTier VPN client
WireGuard	WireGuard client & server
Tinc	Encryption, authentication, compression; client & server
Tailscale	Encrypted point-to-point connections using WireGuard; simpler than traditional VPNs

OPC UA

Supported modes	Client, Server
Supported connection types	TCP

MODBUS

Supported modes	Server, Client
Supported connection types	TCP, USB
Custom registers	MODBUS TCP custom register block requests (read/write to file)
Supported data formats	8-bit: INT, UINT; 16-bit: INT, UINT (MSB/LSB); 32-bit: float, INT, UINT (ABCD/DCBA/CDAB/BADC), HEX, ASCII

DATA TO SERVER

Protocol	HTTP(S), MQTT, Azure MQTT
Data to server	Extract parameters from multiple sources and protocols; send to a single server; custom LUA scripting

MQTT GATEWAY

Modbus MQTT Gateway

Send commands / receive data from MODBUS Server via MQTT broker

DNP3

Supported modes	Station, Outstation
Supported connection	TCP

DLMS/COSEM

DLMS Support	Standard protocol for utility meter data exchange
Supported modes	Client
Supported connection types	TCP, USB

API

Teltonika Networks Web API

Beta support; configurable endpoints to retrieve/change data. Docs: developers.teltonika-networks.com

MONITORING & MANAGEMENT

WEB UI	HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update notifications, event/system/kernel logs, Internet status
FOTA	Firmware update from server, automatic notification
SSH	SSH (v1, v2)
SMS	SMS status, configuration
Call	Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off
Email	Status alerts for services
TR-069	OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT	MQTT Broker, MQTT publisher
SNMP	SNMP (v1, v2, v3), SNMP Trap, brute-force protection
JSON-RPC	Management API over HTTP/HTTPS
RMS	Teltonika Remote Management System (RMS)

IOT PLATFORMS

ThingWorx	Monitor: WAN Type/IP, Operator Name, Signal Strength, Network Type
Cumulocity / Cloud of Things	Monitor: Model, Revision, Serial, WAN Type/IP, Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength; reboot & FW upgrade actions
Azure IoT Hub	Data to Server to cloud; Direct Methods (RutOS API); Plug & Play with DPS (zero-touch provisioning)
AWS IoT Core	Interact with AWS; Jobs support (call device API)

DOCKER

Docker Support

Run isolated apps/services via Docker containers on the device

SYSTEM CHARACTERISTICS

CPU	Mediatek, Dual-core, 1.3 GHz, ARM Cortex A53
RAM*	512MB DDR3
RAM**	1GB, DDR4
FLASH storage*	16MB serial NOR, 512MB serial NAND
FLASH storage**	16MB serial NOR, 8GB eMMC
Feature availability varies by order code (RUTC50 0**) Feature availability varies by order code (RUTC50 1***)

FIRMWARE / CONFIGURATION

WEB UI	Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA	Update FW
RMS	Update FW/configuration for multiple devices at once
Keep settings	Update FW without losing current configuration
Factory settings reset	Full reset restores all settings to manufacturer defaults

FIRMWARE CUSTOMISATION

Operating system	RutOS (OpenWrt-based Linux OS)
Supported languages	Busybox shell, Lua, C, C++
Development tools	SDK package with build environment
GPL customization	Custom branded firmware and web UI (colours, logos, etc.)
Package Manager	Install additional software on the device

LOCATION TRACKING

GNSS	GPS, GLONASS, BeiDou, Galileo, QZSS
Coordinates	GNSS coordinates via WebUI, SMS, TAVL, RMS
NMEA	NMEA 0183
NTRIP	NTRIP protocol
Server software	TAVL, RMS
Geofencing	Configurable multiple geofence zones

USB

Data rate	USB 2.0
Applications	Samba share, USB-to-serial
External devices	External HDD, flash drive, additional modem, printer, USB-serial adapter
Storage formats	FAT, FAT32, exFAT, NTFS (read-only), ext2/3/4

INPUT / OUTPUT

Input	1 × Digital Input, 0–6 V = low, 8–50 V = high
Output	1 × Digital Output, open collector, max 50 V / 300 mA
Events	Email, RMS, SMS
I/O juggler	Set I/O conditions to initiate events

POWER

Connector	4-pin industrial DC power socket
Input voltage range	9–50 VDC; reverse polarity protection; surge/transient protection
PoE (passive)	Power via LAN1; Mode B; 9–30 VDC (not IEEE 802.3af/at/bt). Available from HW rev 0003, batch 007
Power consumption*	Idle < 4.5 W; Max < 13.5 W
Power consumption**	Idle < 5.6 W; Max < 20.2 W
Feature availability varies by order code (RUTC50 0**) Feature availability varies by order code (RUTC50 1***)

PHYSICAL INTERFACES

Ethernet	5 × RJ45 ports, 10/100/1000 Mbps
I/Os	1 × Digital Input, 1 × Digital Output on 4-pin power connector
Status LEDs	4 × WAN status, 3 × Mobile type, 3 × Mobile strength, 8 × LAN status, 1 × Power, 2 × 2.4G/5G Wi-Fi, 2 × WAN
SIM	2 × SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external holders, eSIM optional
Power	1 × 4-pin power connector
Antennas	4 × SMA (Mobile), 3 × RP-SMA (Wi-Fi), 1 × SMA (GNSS)
USB	1 × USB-A for external devices
Reset	Reboot / User default reset / Factory reset button
Other	1 × Grounding screw

PHYSICAL SPECIFICATION

Casing material	Anodized aluminum housing & panels
Dimensions (W×H×D)	130.4 × 42.6 × 103.4 mm
Weight	452 g
Mounting options	DIN rail, wall mount, flat surface (kits required)

OPERATING ENVIRONMENT

Operating temperature	-40 °C to 75 °C
Operating humidity	10% to 90% non-condensing
Ingress Protection Rating	IP30

REGULATORY & TYPE APPROVALS

Regulatory*	REACH, RoHS, CE, UKCA, CB
Regulatory**	CE/RED, UKCA, CB, RCM, EAC, UCRF, WEEE
Vehicle*	ECE R118, ECE R10 (E-mark)
Feature availability varies by order code (RUTC50 0**) Feature availability varies by order code (RUTC50 1***)

EMC EMISSIONS & IMMUNITY

Standards*

EN 55032:2015 + A11:2020 + A1:2020; EN 55035:2017 + A11:2020; EN 61000-3-3:2013 + A1:2019 + A2:2021; EN IEC 61000-3-2:2019 + A1:2021; EN 301 489-1 V2.2.3; EN 301 489-3 V2.3.2; EN 301 489-17 V3.2.4; EN 301 489-19 V2.2.1; EN 301 489-52 V1.2.1

Standards*

EN 300 328 V2.2.2; EN 300 440 V2.2.1; EN 301 893 V2.1.1; EN 303 413 V1.2.1; EN 301 908-1 V15.2.1; EN 301 908-2 V13.1.1; EN 301 908-13 V13.2.1; Draft EN 301 908-25 V15.1.1_0.0.21

SAFETY

Standards*

EN IEC 62368-1:2020 + A11:2020; EN IEC 62311:2020

SAFETY (ORDINARY LOCATIONS)

Standards*	EN IEC 62368-1:2020 + A11:2020
Feature availability varies by order code (RUTC50 0**) Feature availability varies by order code (RUTC50 1***)

Download

RUTC50 Flyer (EN) - Apri qui
RUTC50 Scheda tecnica (EN) - Apri qui
RUTC50 Guida rapida (EN) - Apri qui
Firmware - Apri qui
Manuale utente RUTC50 - Apri qui
Certificazioni e approvazioni - Apri qui
Notifiche di modifica prodotto - Apri qui
SDK - Apri qui
GPL - Apri qui
Modelli 3D RUTC50 - Apri qui
