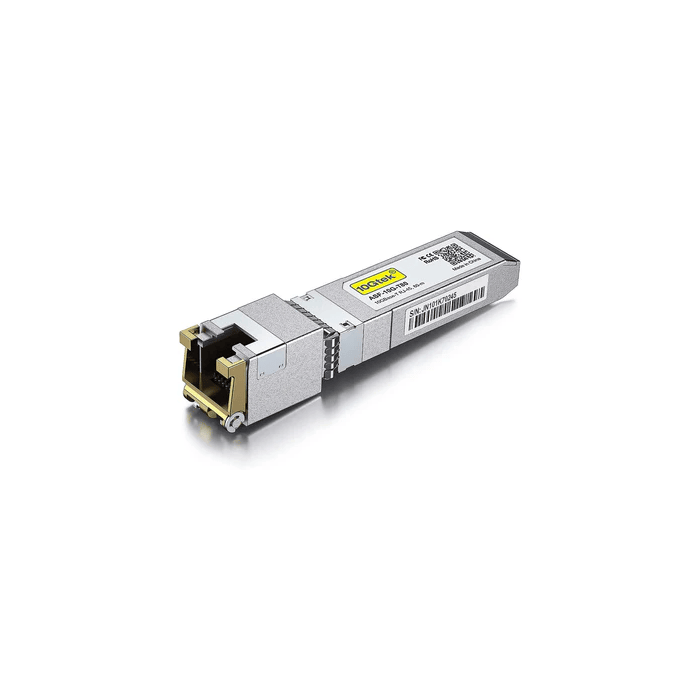

The ASF-10G-T80 is a 10GBase-T multi-rate Copper RJ45 SFP+ transceiver. Equipped with a BROADCOM BCM84891 PHY chip, the ASF-10G-T80 offers ultra low power consumption and longer transmission distance (1.6W 10Gbps 30m, 2.0W 10Gbps 80m).
FOR USE WITH NETGATE 6100, 8200, 8300, 1537, and 1541 SECURITY GATEWAYS
Key Features
SFP+ transceiver module
Broadcom BCM84891 PHY chip
10GBase-T*
RJ-45 interface
Operating data rate up to 10.3Gbps
Transmission distance up to 80m
Supports DOM
Operating Case Temperature Standard: 0°C ~ +70°C (32°F ~ 158°F)
Applications
10GBASE-T Ethernet
CAT.6a / CAT.7
Compliance Information
Compliant with MSA SFP+ specification
Compliant with IEEE 802.3an/az
SUPPORT AND WARRANTY INFORMATION
Manufacturer's Hardware Warranty: 1 years.
All specifications subject to change without notice.
*10G only. Does not support 2.5G or 5G.
